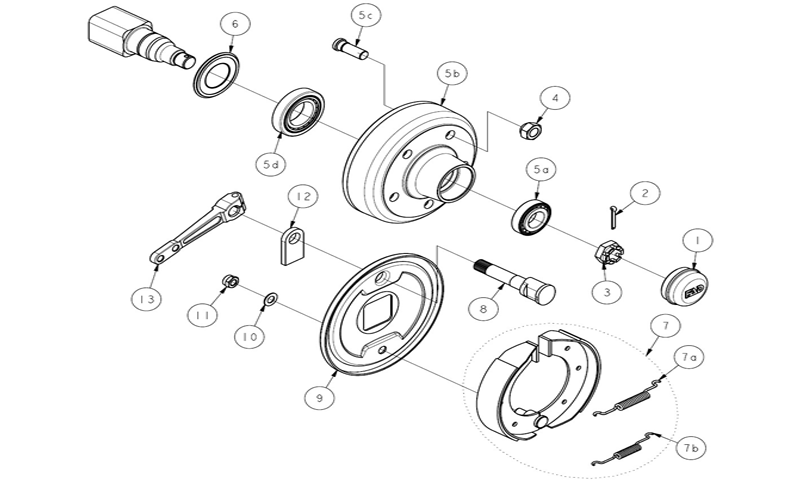

SPARE PART LIST FOR AXLES AND STUB AXLES WITH BRAKE
| Position | Description | |
|---|---|---|
| 1 | Cap | |
| 2 | Split Pin | |
| 3 | Crown Nut | |
| 4 | Wheel Nut |
5 | Wheel Nut |
6 | Wheel Nut |
| Unit | 7a | External Bearing |
| 7b | Grease Ring | |
| 7c | Hub | |
| 7d | Grease Ring | |
| 7e | Inner Bearing | |
| 7f | Drum | |
| 7g | Wheelstud | |
| 8 | Retaining Ring | |
| 9 | Brakeshoes Assembled | |
| 9a | Upper String | |
| 9b | Lower Spring | |
| 10 | Cam Shaft | |
| 11 | O Ring | |
| 12 | Washer | |
| 13 | Crown Nut | |
| 14 | Split Pin | |
| 15 | Seeger Ring | |
| 16 | Bush | |
| 17 | Spring | |
| 18 | Brake Lever | |
| 19 | Seeger Ring |
