Sidra Suspension

SIDRA® SUSPENSIONS

The breakthrough solution for any highly demanding, on the road and in the field.

Plus

Dynamic stability: The FAD ASSALI SIDRA® system is designed with the advantage of improved trailer handling characteristics, resulting in a unique driving experience, regardless of whether you are moving on or off-road. Thanks to independent, interconnected set of hydraulic cylinders, the system is able to adapt instantaneously to the unevenness of the ground the vehicle is travelling onto.

Reduced fuel consumption: the limited amount of stresses transmitted to the tractor through the coupling allow for a smoother movement of the whole vehicle in the field. Less power is required from the tractor engine resulting in a reduced fuel consumption rate and a better driving feel.

Ease of installation: one of the additional benefits of the system lies in its ease of installation. Just a few bolts are needed for fixing onto the machine frame, ensuring a time and cost-saving assembly process onto the final vehicle. Alternatively, the system can be easily welded into place.

Maximum Flexibility: all SIDRA® modules are equipped with either fixed or steering stub-axles and self or forced steering systems, which can be easily combined for a single, tandem or tridem axle configuration trailer. Also available upon request are different track widths, which can be varied on demand according on the type of application and tyres used and customised versions for special trailers.

Storage: Modules are palletized vertical so to occupy the least space possible, advantage both for transport and for the storage by the customer.

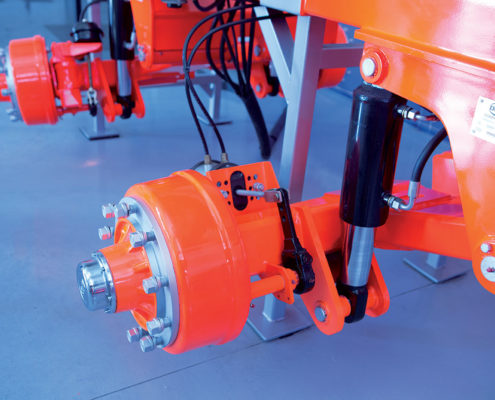

A complete suspension system consisting of a self-loading structure, braked stub axles and hydraulic circuit. Available for load carrying capacitates up to 14000kg/module.

• Braked steel hubs stub-axles homologated according to the EEC 71/320 regulation up to 105 km/h
• Additional accessories available upon request:
• Front axle lifting kit
• Steering reverse motion locking system
• ABS and RDS options
• Nitrogen accumulators
• Locking Valves

  9000 9000S 12000 14000
Max Loading Capacity@40km/h (kg) 9000 9000 12000 14000
Track Length (mm) 1950/1980 1950/1980 1980/2150 2100
Nominal Height (mm) 355 355 400 450
Maximum Apmlitude (mm) ±110 ±110 ±125 ±140
Max Tye Width (mm) 600 600 700 750
Brake and Camshaft Type 400Gx80 "0" 400Gx120 "8" 400Gx120 "8" 412Gx160 "8"
Hau Type 32214-32217 32214-32217 333213-32218 32218-32221
Module Weight Fisso 480 / Fixed Fisso 530 / Fixed Fisso 600 / Fixed Fisso 800 / Fixed
